Specification :
Width: from 3 meters to 50 meters
Length: Unlimited, extended by 3m or 5m each bay
Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)
| Type | Span width | Bay spacing | Eave height | Ridge height | Main frame profile |
| (m) | (m) | (m) | (m) | (mm) |
| Big tent-6 | 6 | 3 | 2.5 | 3.5 | 48X84X3 |
| Big tent-8 | 8 | 3 | 2.5 | 3.9 | 48x84x3 |
| Big tent-10 | 10 | 3 | 2.5 | 4.3 | 48X84X3/48x100x3 |
| Big tent-12 | 12 | 5 | 3 | 5.1 | 68x122x3 |
| Big tent-15 | 15 | 5 | 3 | 5.4 | 108X150X3 |
| Big tent-18 | 18 | 5 | 4 | 6.9 | 112X203X4 |
| Big tent-20 | 20 | 5 | 4 | 7.2 | 112X203X4 |
| Big tent-25 | 25 | 5 | 4 | 8 | 112X203X4 |
| Big tent-30 | 30 | 5 | 4 | 8.8 | 113X259X5 |
| Big tent-40 | 40 | 5 | 4 | 10.4 | 120X300X5 |
| Big tent-50 | 50 | 5 | 5 | 13 | 128x350x5 |
| The length can be extended by 3m such as 6m,12,18m,30m... or by 5m bay such as 15m,20m,30m,40m... Customized size or shape is available. |
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 15 years.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max.100km/h (can be reinforced)
Snow load: 25kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Other option:
1)White PVC cover(roof + sidewalls)

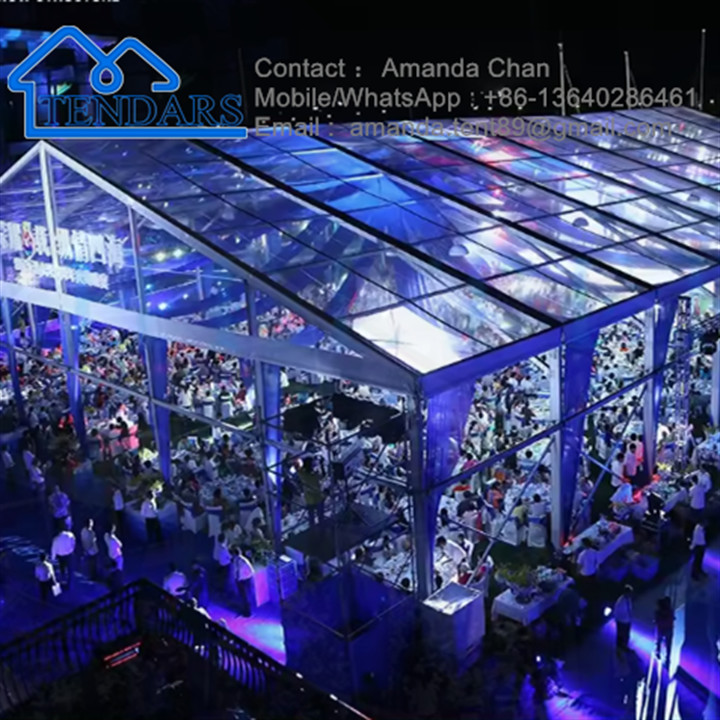

2)Clear PVC cover(roof + sidewalls)
3)White PVC wall with clear windows
4)Wall: Glass wall with windows, Sandwich walls, ABS walls, Steel panel walls
5)Door: glass door, metal door, shutter door, sliding door, etc
6)Flooring system
7)Lining and curtain
8)Other suppliers, such as door canopy, chairs, tables, lighting, air condition, etc
FAQ:
1. Are you tent factory?
Yes, we are professional tent manufacturer in guangzhou of China, close to shenzhen and hangzhou.
We assure you our prices are based on factory.
2. What is the MOQ of the tent?
One Set.
3. What size tent and what types do i need?
Tent size depends on the number of people to accommodate or the area you want to cover. In our factory, you choice can be 3 meter to 50 meter on width.
For tent types, contact us with detailed requirements. We will send you our professional solution.
4. What is the production time for standard tent?
15-20 days after deposit confirmed.
5. What’s the lifespan of your clear span structure tent?
In the reasonable using, the lifespan of the aluminum alloy can last over 10 years and the PVC cover is more than 5 years.
6. Can your tent be relocated?
All our tent structures is designed into relocatable construction. For the seasonal and regional reason, you can dismantle, store or remove the tent to other location.
7. Can I extend the tent size or replace the related accessories in the future?
Sure. All of our tent structures and accessories are modular type. You can extend the tent length by adding some extra parts.
For accessories or replacements to renew the tents, we will offer a reasonable price for our regular clients.
